Watts to Amps Calculator

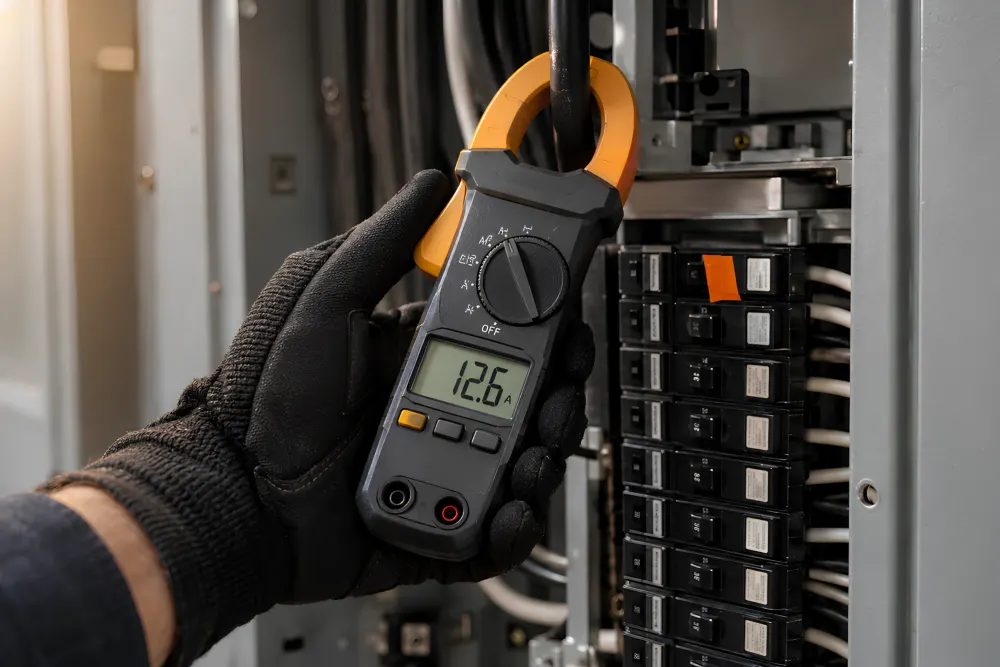

Watt's law itself, current equals power divided by voltage, is simple enough that a calculator barely seems necessary. What actually trips people up converting watts to amps for a real device is power factor, and skipping it is the most common reason a hand calculation and a clamp meter reading disagree.

Power factor exists because alternating current has two components: real power (measured in watts, the part that actually heats, lights, or spins something) and reactive power (created by the magnetic fields inside motors, transformers, and compressors, which does no useful work but still has to be delivered). Apparent power, measured in volt-amps, is the combination of both, and it's apparent power, not real power, that actually determines how much current a wire carries. Power factor is the ratio between them: real power divided by apparent power, always between 0 and 1.

A purely resistive load, an incandescent bulb, a space heater, a toaster, has a power factor of 1: all the delivered power is real power, so amps equal watts divided by volts with nothing else in the equation. An induction motor, a refrigerator compressor, an air conditioner, or a fluorescent or older LED driver with a cheap ballast typically runs 0.8 to 0.95, meaning it draws more current than its wattage rating alone would suggest. A 1000-watt motor at 0.85 power factor and 120 volts draws 1000 / (120 × 0.85), about 9.8 amps, versus 8.33 amps if power factor were ignored entirely, a 17% understatement that can be the difference between a wire sized correctly and one running hotter than its rating allows.

When an appliance nameplate lists amps directly, use that number. When it lists only watts and you need amps for wiring or breaker sizing, and the device has a motor or compressor, 0.8 to 0.9 is a reasonable default in the absence of a manufacturer-specified value; for straightforward resistive heating elements, 1 is correct and exact.

Most homes run on single-phase AC power, one sine wave, one pair of hot and neutral wires (plus ground), which is why the plain A = W / (V x PF) formula covers nearly every household watts-to-amps question. Three-phase power, standard in commercial buildings, industrial equipment, and larger motors, uses three separate sine waves offset by 120 degrees from each other, and that structure changes the math in a way that catches people who assume it's just the single-phase formula with a bigger number.

The first fork is which voltage was actually measured. Line-to-line voltage (sometimes written L-L or phase-to-phase) is measured between any two of the three hot conductors, and it's the number printed on most three-phase motor and equipment nameplates: 208V, 240V, 400V, and 480V are common line-to-line ratings in North America. Line-to-neutral voltage (L-N) is measured between one hot conductor and the system neutral, and in a standard wye-configured system it equals the line-to-line voltage divided by the square root of 3, roughly 1.732; a 208V line-to-line system has a 120V line-to-neutral voltage, and a 480V line-to-line system has a 277V line-to-neutral voltage.

Using line-to-line voltage, the formula is A = W / (√3 x V x PF). Using line-to-neutral voltage instead, it's A = W / (3 x V x PF); the 3 replaces the square-root-of-3 because a line-to-neutral calculation is really a per-phase calculation multiplied out across all three phases.

Put the same 10,000-watt three-phase load through both: at 208V line-to-line and 0.9 power factor, that's 10000 / (1.732 × 208 × 0.9), about 30.84 amps. At 120V line-to-neutral and the same power factor, it's 10000 / (3 × 120 × 0.9), about 30.86 amps, close to the first result here because 208V line-to-line and 120V line-to-neutral describe the same underlying 208Y/120 system; the two formulas exist precisely so either voltage measurement lands on the correct current for that same real load. Using the wrong formula for the voltage actually measured, rather than mixing up which system it is, is the error worth double-checking before trusting a three-phase result.

Converting watts to amps is only as accurate as the wattage figure going in, and nameplates are not always as literal as they look. A device's nameplate wattage is typically its rated maximum continuous draw under normal operating conditions, not necessarily what it pulls at every moment: a refrigerator compressor cycles on and off rather than running continuously at its rated wattage, and many motors draw a brief inrush current several times their running current at the instant they start, which the steady-state watts-to-amps formula does not capture.

When a nameplate lists amps directly rather than watts, use the listed amps: it already reflects the manufacturer's own measured or rated current, including whatever power factor and inefficiency the actual hardware has, and back-calculating watts from voltage and an assumed power factor introduces error a direct reading doesn't have. When only watts and voltage are listed, this calculator's DC and AC single-phase formulas apply directly for most household electronics and single-phase appliances; check whether the device is resistive (heating, lighting) or has a motor or compressor before assuming a power factor of 1. More math and unit-conversion tools on CalculatorPlanet cover a wide range of everyday conversions if a different calculation is needed next.

For motors specifically, nameplate data usually includes full-load amps (FLA) directly, which is the number to use for wiring and breaker sizing rather than recalculating from horsepower or wattage; the National Electrical Code's own motor tables (NEC Table 430.250 and related tables) are the authoritative source when a nameplate is missing or illegible, and they already build in typical efficiency and power factor for standard motor types.

A watts-to-amps result gives the actual current a load draws under normal operation, but sizing a circuit, breaker, or conductor around that number alone is how circuits end up nuisance-tripping or, worse, overheating. Two adjustments matter beyond the raw calculation.

First, the National Electrical Code (NFPA 70) requires that a continuous load, defined as one expected to run at maximum current for 3 hours or more, be sized at no more than 80% of a breaker's or conductor's rating, which is the same as saying the breaker or wire must be rated for at least 125% of the calculated continuous amps. A 16-amp continuous load needs at least a 20-amp breaker (16 / 0.8 = 20), and the same 125% math applies at any load: a 12-amp continuous load still needs a 15-amp breaker, not exactly a 12-amp one, to leave the required headroom.

This margin exists because sustained near-maximum current heats a breaker and conductor more than the same current running briefly, and the code's ampacity tables already assume that headroom is present.

Second, calculated amps assumes ideal conditions: a single circuit, unrestricted airflow around the conductor, and no unusual ambient heat. Multiple current-carrying conductors bundled in the same conduit, high ambient temperatures (an attic run in summer, proximity to a furnace), and long conductor runs where voltage drop becomes significant all reduce a wire's safe ampacity below its plain rated value, which is why the NEC's conductor ampacity tables include separate derating factors for exactly these situations rather than a single number per wire gauge.

None of this changes what this calculator returns, the real current a load draws, but it's the difference between a technically correct amps figure and a circuit, breaker, and wire gauge that's actually safe to install. For anything feeding a permanent circuit rather than a plug-in device, that sizing step belongs to a licensed electrician working from the NEC directly, not from a wattage label alone.
