Pond Volume Calculator

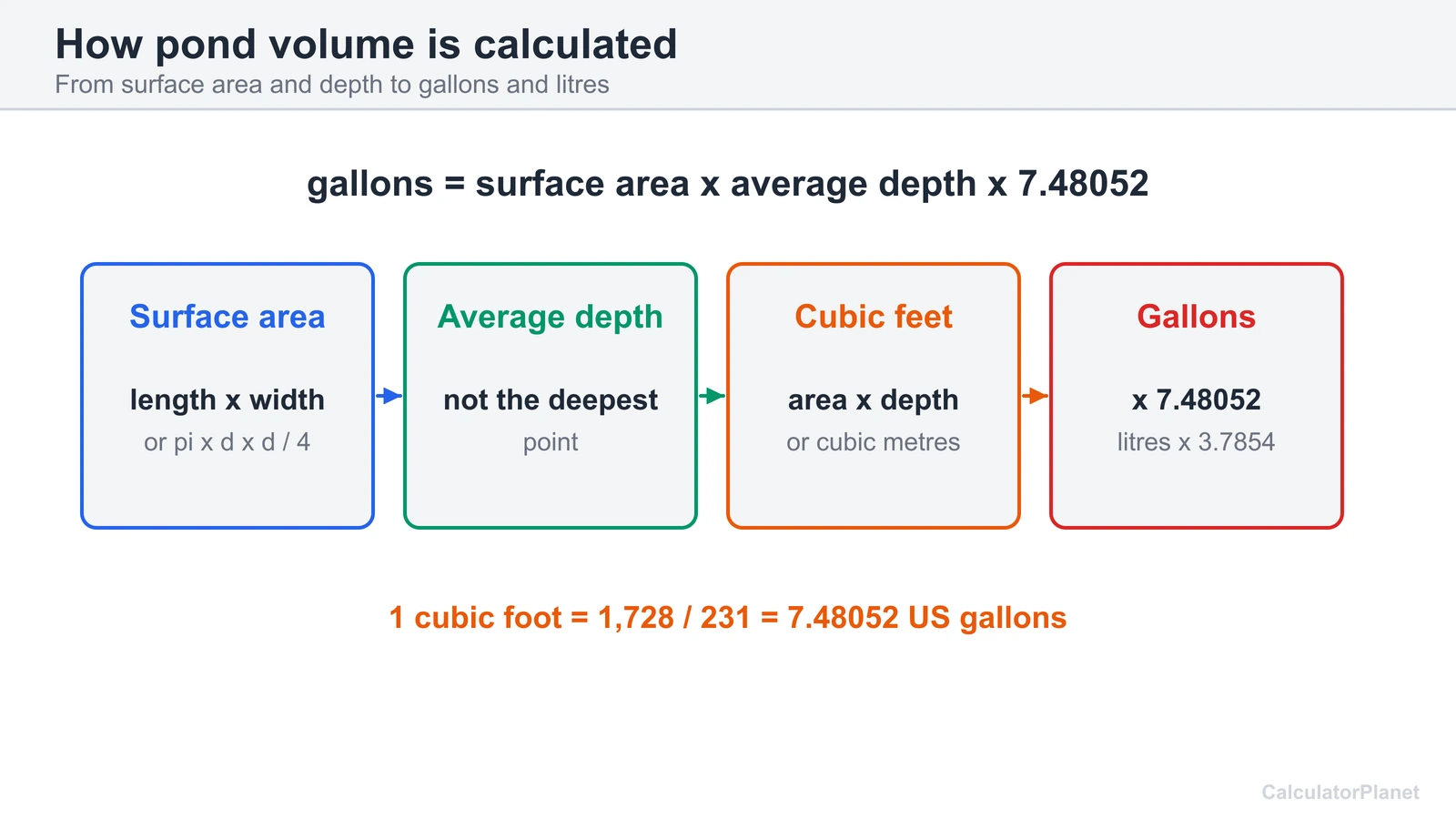

Every pond volume is a surface area times an average depth. Measure the water surface, not the outer edge of the stone border. Measure the depth at several places, add the readings and divide by the number of readings. Multiply the area by that average depth and you have cubic feet or cubic metres.

To get gallons, multiply cubic feet by 7.48052. To get litres from cubic metres, multiply by 1,000. In the calculator you pick the shape, type the sizes and read the volume in US gallons, litres, cubic feet, cubic metres and imperial gallons at once.

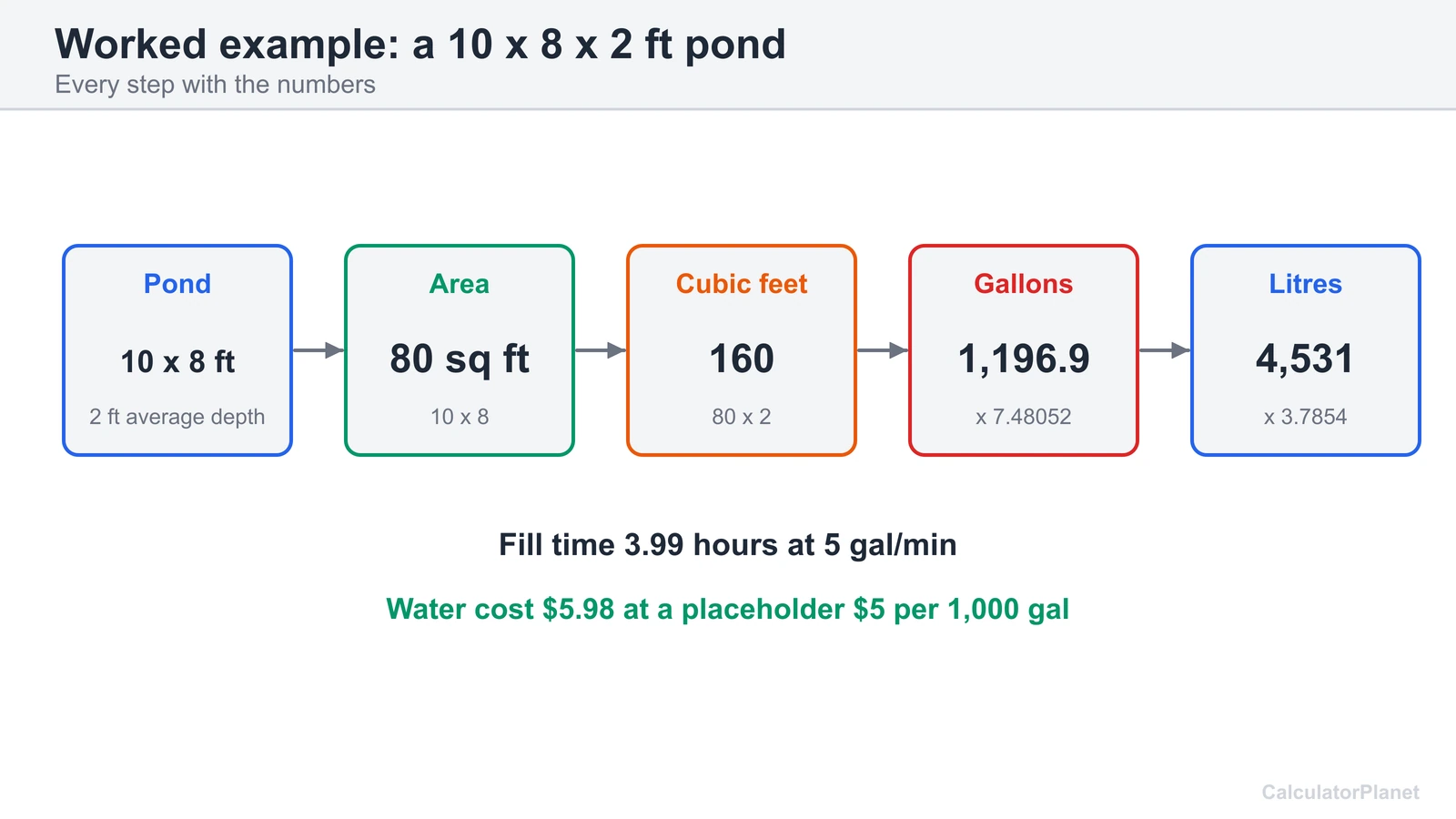

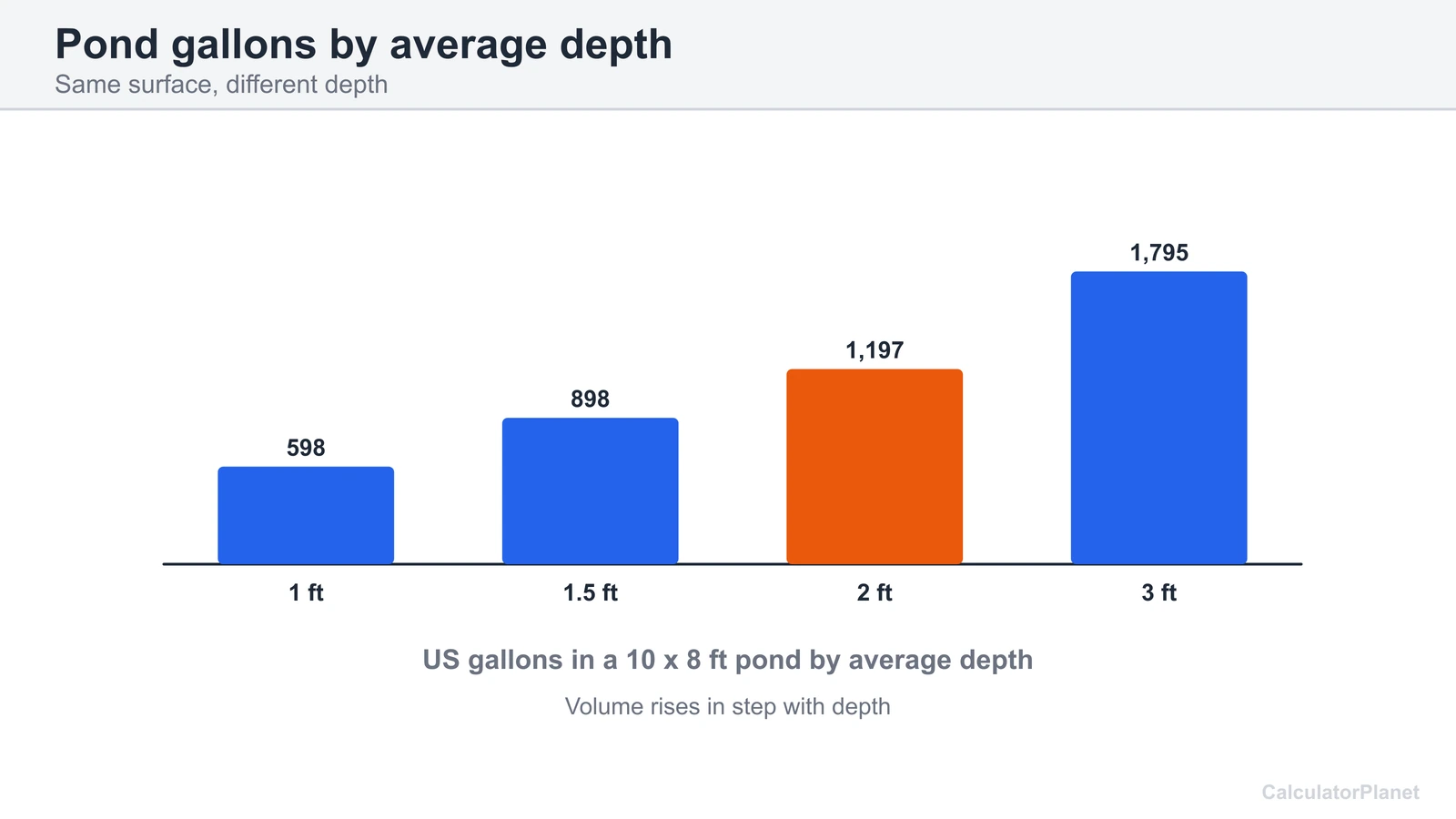

A 10 × 8 ft pond with a 2 ft average depth holds 1,197 gallons. Most mistakes come from the depth, not the arithmetic, so the next sections explain the average depth for each pond type.

The US gallon is defined as exactly 231 cubic inches, which is 3.785411784 litres (Wikipedia, Gallon). A cubic foot is 12 × 12 × 12 = 1,728 cubic inches. Dividing 1,728 by 231 gives 7.48052 gallons per cubic foot. That is the 7.48052 used here.

You will see the rounded figure 7.5 in many garden guides, and Kansas State University's water gardening guide uses it: average length times average width times average depth, times 7.5. The rounding adds about 0.3 percent to the result, which is small next to the error in a hand-measured depth.

The imperial gallon used in the UK is larger, 4.54609 litres, so a cubic foot is 6.22884 imperial gallons. The calculator shows both, so you can match the unit on your pump, filter or treatment label.

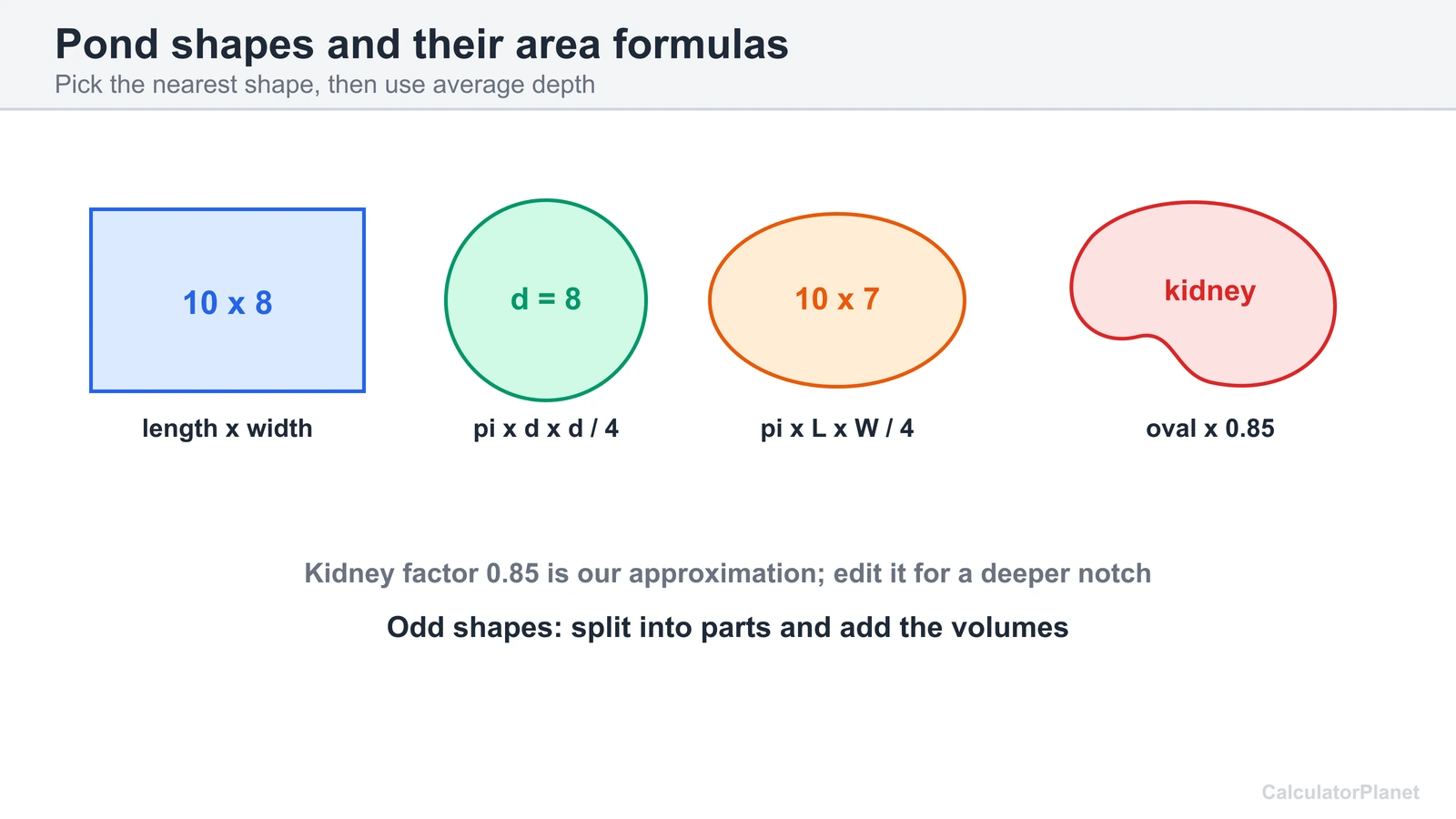

A rectangle is length times width times depth. A circle is pi times the diameter squared divided by 4, times depth. An oval uses pi times the long diameter times the short diameter divided by 4. The tables on this page show the gallons for common sizes at 1.5, 2 and 3 ft average depth.

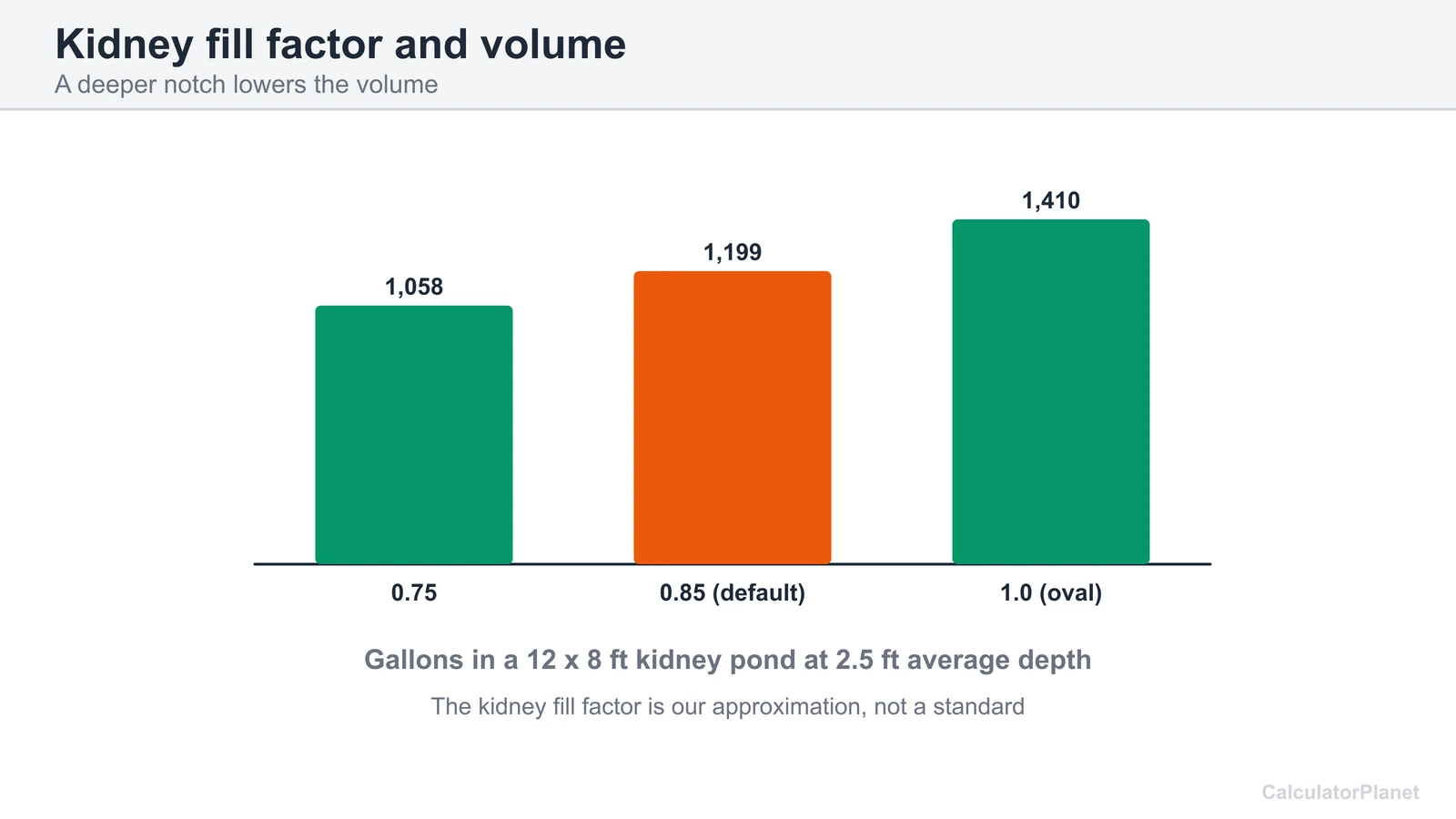

A kidney shape is an oval with a bite removed, so the oval formula overestimates it. The calculator multiplies the oval area by a fill factor, 0.85 by default, which is our own approximation and not a standard. Measure the longest length and the widest width, then lower the factor for a deeper notch. A 12 × 8 ft kidney at 2.5 ft holds 1,199 gallons with the default factor and 1,410 as a full oval.

When the shape is very uneven, split it into a rectangle, a circle and so on, find each volume and add them. The parts table shows how.

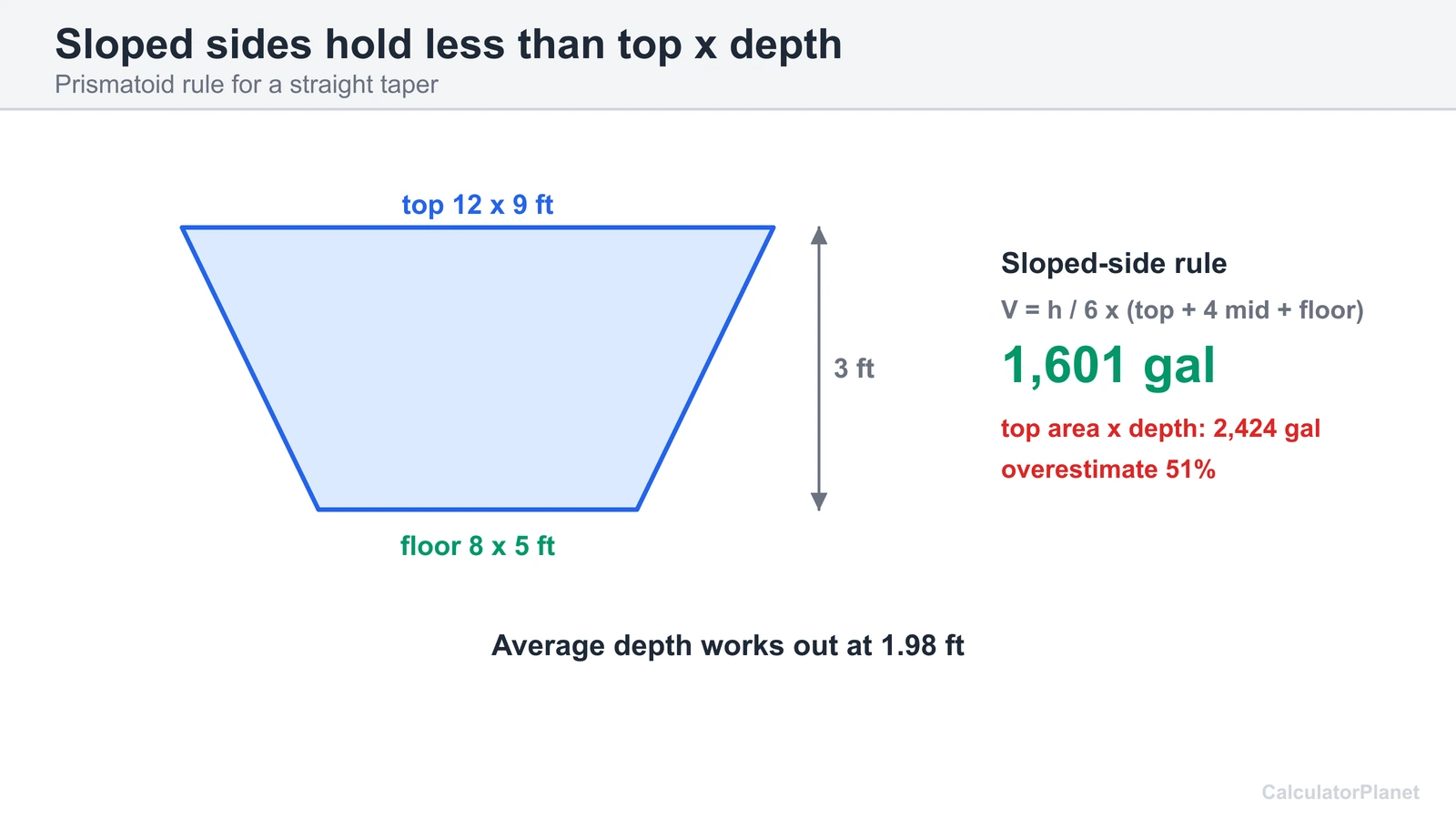

Many lined ponds have sides that slope in towards a smaller floor. Multiplying the top area by the depth overestimates them. The sloped option takes the top and floor sizes and uses the prismatoid rule, V = h / 6 × (top area + 4 x middle area + floor area), which is exact for a straight taper. A 12 × 9 ft top, 8 × 5 ft floor and 3 ft depth gives 1,601 gallons.

Stepped ponds have a deep zone, a middle level and a shelf for plants. Kansas State University describes a deep area at least 24 to 30 inches deep and a marginal shelf 12 to 18 inches deep. Enter each zone as a length, a width and a depth, and the calculator adds length x width x depth for each. Use zone 3 for a third level, or leave it at zero.

If the walls are vertical with a flat floor, use the plain rectangle, circle or oval with the real depth.

For a free-form pond, measure the surface area first. Trace the outline on a satellite map, or pace out a grid of squares. Then find the average depth. Penn State Extension suggests dividing the pond into at least four sub-areas, taking a depth in each and averaging them.

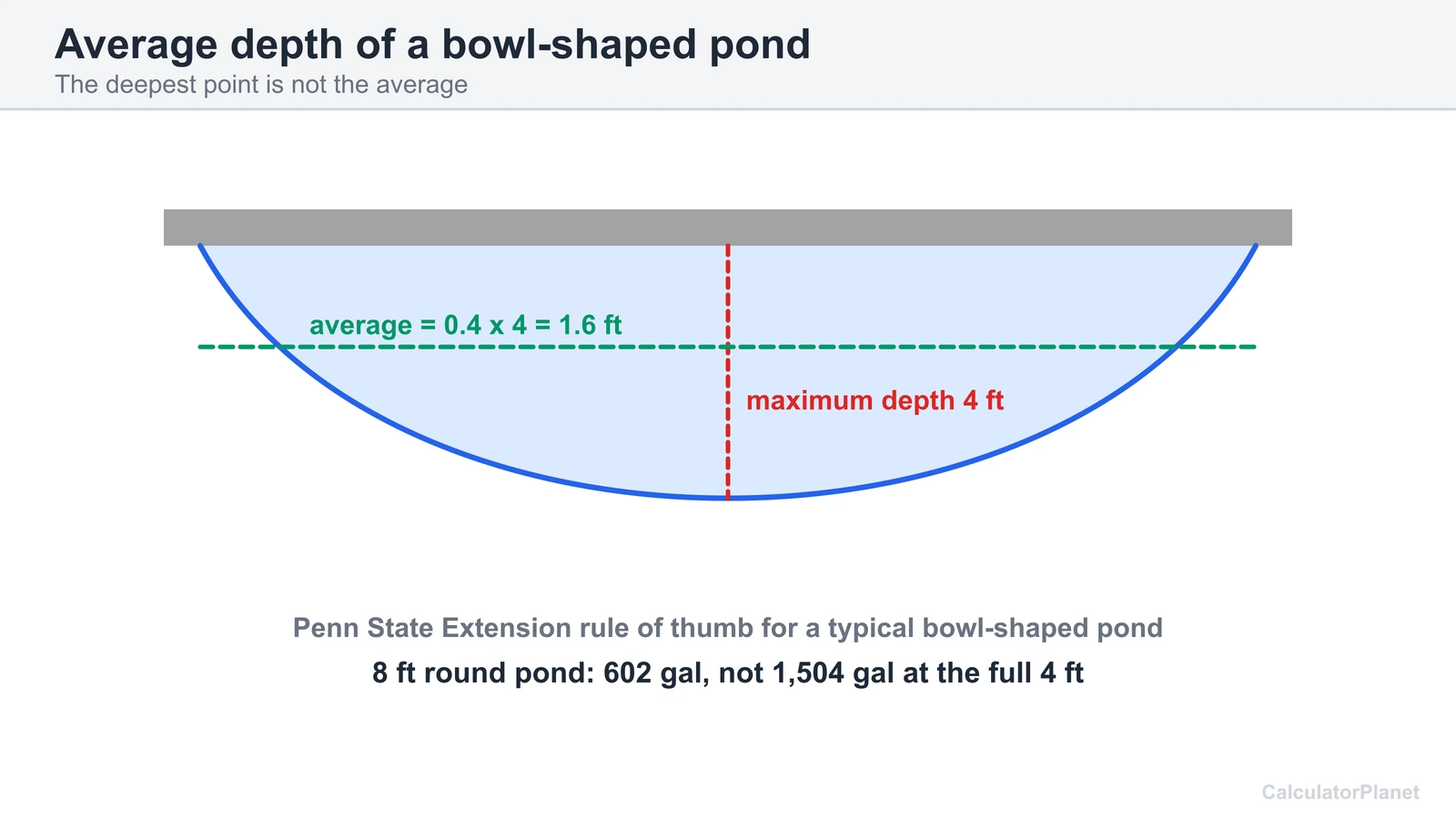

If you only know the deepest point of a bowl-shaped pond, Penn State gives a rule of thumb: the average depth is about 0.4 times the maximum depth. The calculator offers that as the bowl option. It is a rule for typical bowl shapes, so a pond with steep sides and a wide flat floor will hold more than it predicts. In that case use the custom factor, or measure the depths directly.

A 300 sq ft bowl-shaped pond that is 5 ft deep holds 4,488 gallons by this rule. Treat any pond measured this way as a good estimate, not an exact figure.

The size table above turns common volumes into the surface area they need. A 1,000 litre pond is one cubic metre, or 264 US gallons. With a flat floor 0.6 m deep it needs about 1.7 sq m, so a 1.5 × 1.1 m rectangle. A 3,000 litre pond needs about 5 sq m at the same depth, and a 10,000 US gallon pond needs 63 sq m, or 668 sq ft at 2 ft deep.

The same volume can be a wide shallow pond or a small deep one. Deeper ponds hold their temperature better and give fish a place to go in winter, but they need more digging and a bigger liner. Decide the use first, then choose the depth.

You can also work the other way: type a target in the calculator and adjust the length and width until the volume matches.

Volume sets how many fish a pond can carry. Texas A&M AgriLife Extension says to stock no more than 1 inch of fish per 3 to 5 gallons of water, and that fish stocked below the pond's capacity grow larger and stay healthier. A cautious 10 gallons per inch is a common planning choice. At that rate a 2,000 litre pond (528 gallons) carries about 53 inches of fish. Koi grow much larger, so they need much more water.

The volume also sets the pump and the fill time. Kansas State University advises turning the whole volume over one to four times an hour. The fill time is the volume divided by the hose flow, so your 1,197 gallon pond takes 4.0 hours at 5 gallons a minute.

Do not treat these as veterinary or aquaculture advice. They are planning figures, and the label on any treatment, pump or filter has the final say.

Measure at the normal water level, on a calm day, with a tape and a straight pole. Round measurements to the nearest inch. Take more depth readings than you think you need, because depth is where the error hides. Keep a note of the date so you can check the level later.

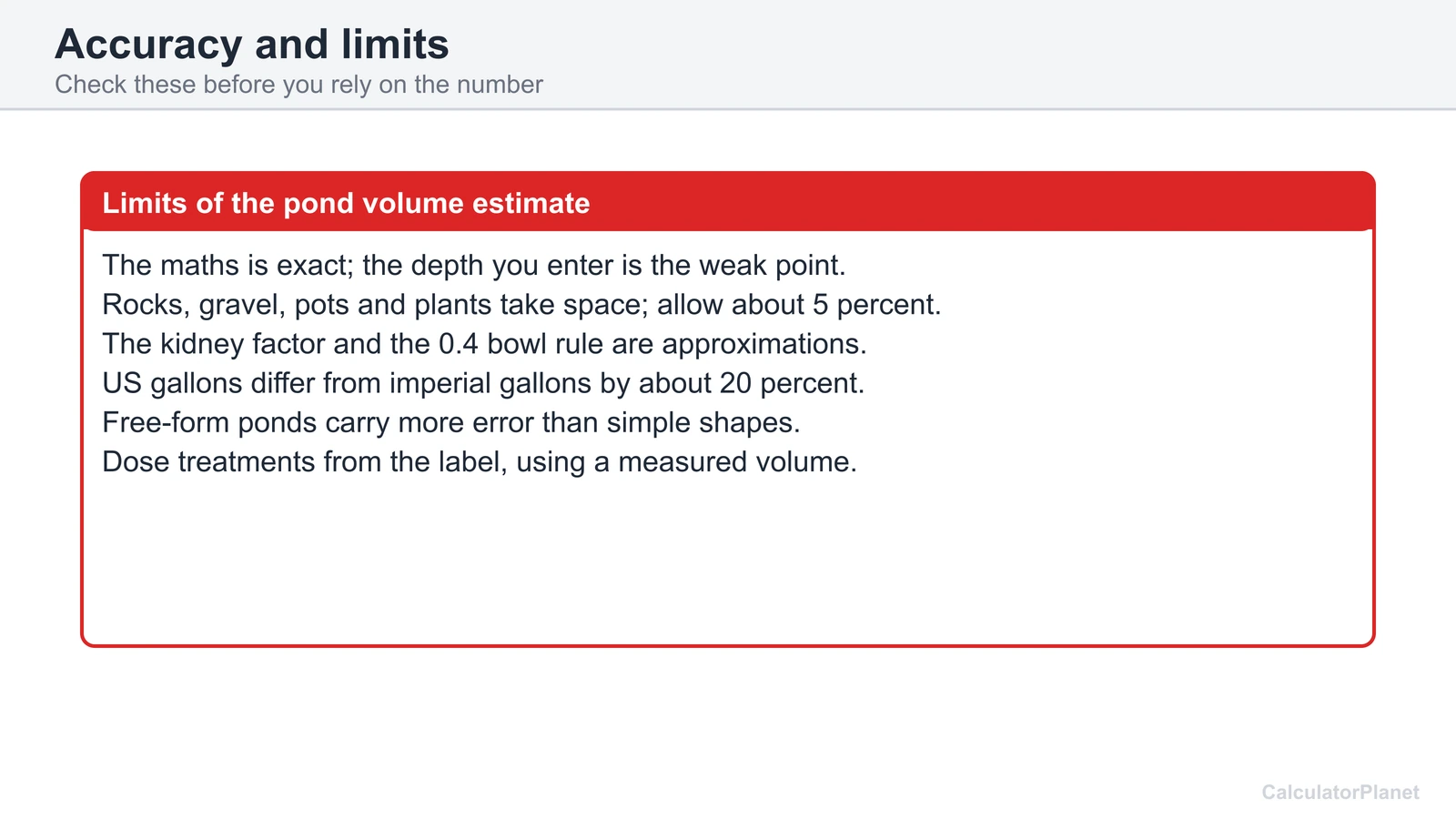

The result is an estimate. Rocks, gravel, planting pots and plants take up space, so the real volume can be a few percent lower. Water treatments and medicines should be dosed from the product label, using a measured volume. If your pond is large, deep or dammed, ask a qualified person about safety and local rules.

To finish the build, the river rock calculator works out edging stone, the gravel calculator covers the base, and the stone calculator helps with a stone border. A pond liner and a pond size planner use the same measurements.
